| Model NO. |

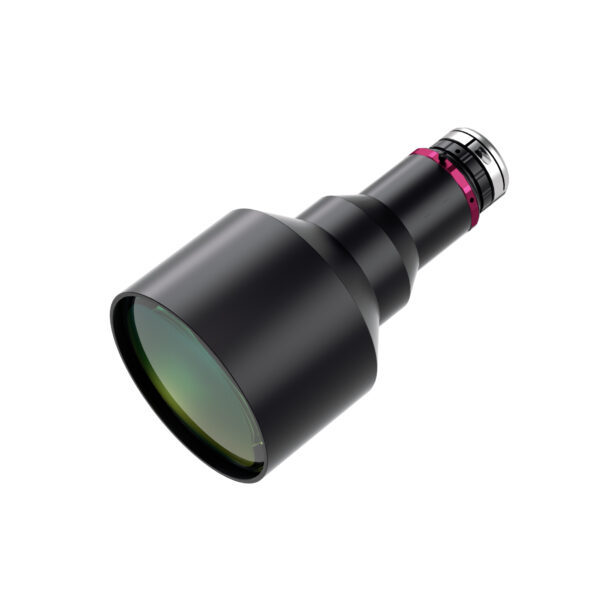

DTCA121-80-G-AL |
Magnification(x) |
0.3 |
| Object Field of View (Φmm) |
80.0 |
Working Distance (mm) |
240 |
| Max Sensor Size (Φmm) |
20(1.2") |
Best Aperture (F/#) |
6.0 |
| Telecentricity typical (max) (deg) |
0.1 |
Distortion typical (max) (%) |
0.05 |
| MTF30 (lp/mm) |
150 |
Depth of Field (mm) |
7.7 |
| Length of I/O (mm) |
448 |
Mount |
C |
| Length (mm) |
190.7 |
Weight (kg) |
1.26 |
| Coaxial Illumination Port Option |
NO |
Iris Adjustable |
YES |
| Back Focal Length Adjustable |
NO |
|
Field of View (mm × mm)
|
1.2" IMX530/540 (14.6x12.6) |
58.4x50.4 |
|
|

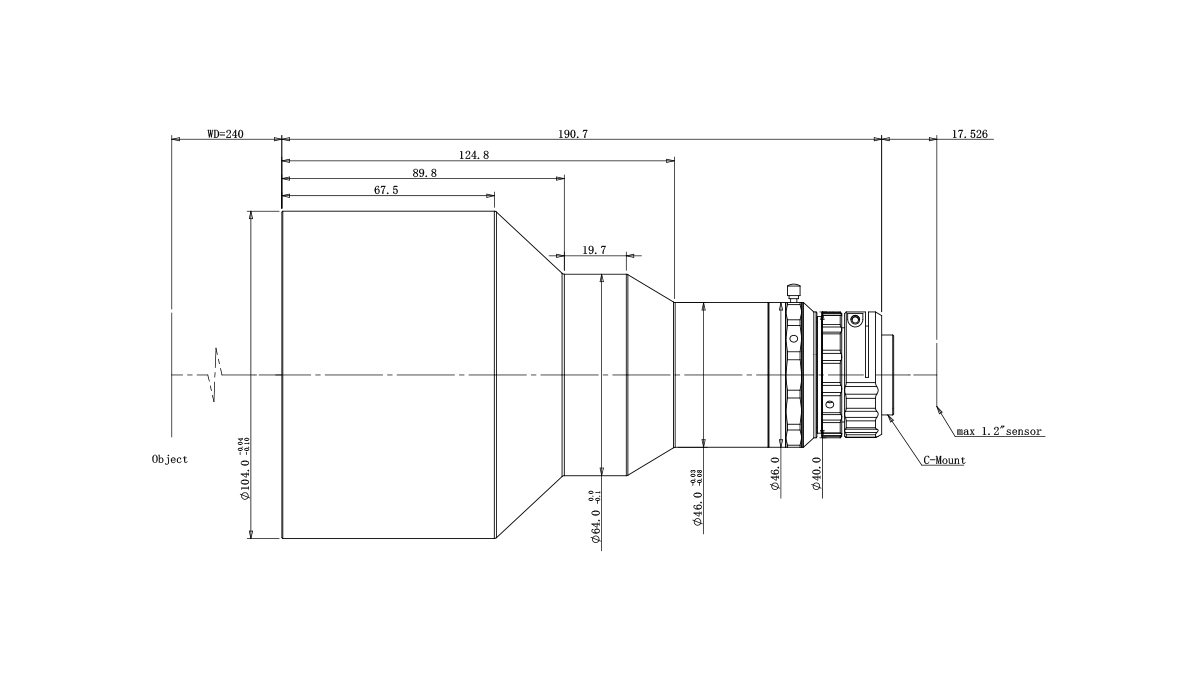

Dimensions
