Model NO. |
DTCM35FH-110-M58-AL |
Image Circle Diameter (Φmm) |
43.6(35mm Full) |
Magnification(x) |
0.396 |
Working Distance(mm) |
263±4 |
NA |
0.0213 |
Type |
Bi-Telecentric |
Mount |
M58 |
Object Field of View(Φmm) |
110 |
Best Aperture(f/#) |
9.3 |
MTF30 (lp/mm) |
>90 |
Depth of Field(mm) |
±4.1@F16 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
669±6 |
Length (mm) |
393.9 |
Weight(kg) |
3.4 |
Measured Depth of Field (mm) |
2.6 |
Filter Screw Size |
M111x0.75 |
Field of View (mm × mm)
|
CMV50000 (36.43x27.62) |
92.0x69.7 |
KAI29050/2 (36.17x24.11) 34.8x23.2 |
91.3x60.9 |
KAI43142 (36.18x24.12) |
91.4x60.9 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-110-xW-y |
Beam Diameter 110mm |

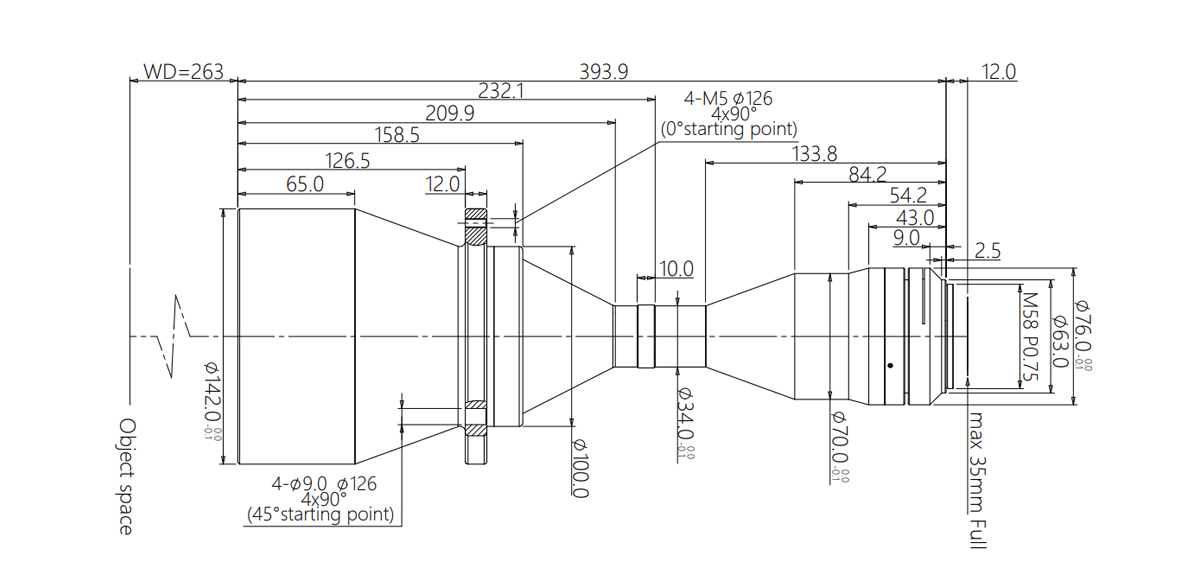

Dimensions
![]()
Naming Rule
![]()
