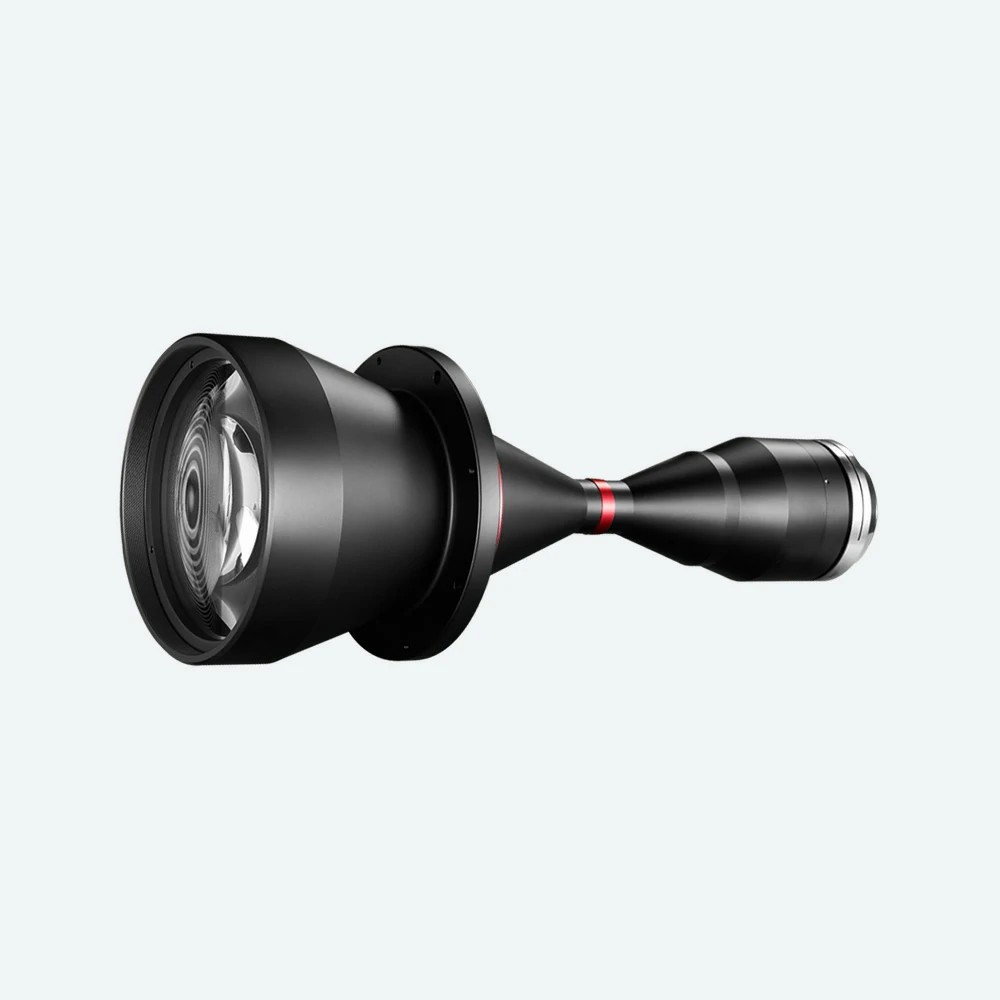

16K 0.393X Bi-Telecentric Lenses | DTCM16K-150-AL COOLENS®
16K 0.393X Bi-Telecentric Lenses | DTCM16K-150-AL COOLENS®
DTCM16K-150-AL
Image Circle:59(16K)mm, Magnification:0.393X, FoV:150mm, WD:300±5mm, NA:0.00992, Mount:M72, Type:Bi-Telecentric Lenses
$5,961.00 USD
$0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$5,961.00 USD
each
Sold Out
Add to cart
Share
Tweet
Pin it
LINE
Whatsapp
Tumblr
Description
Download the Specification: pdf
Download the IGES: igs
Download the STEP: step
Model NO.
DTCM16K-150-AL
Image Circle Diameter (Φmm)
59(16K)
Magnification(x)
0.393
Working Distance(mm)
300±5
NA
0.0099
Type
Bi-Telecentric
Mount
M72
Object Field of View(Φmm)
150
Best Aperture(f/#)
19.8
MTF30 (lp/mm)
>45
Depth of Field(mm)
±5.1@F20
Distortion Typical(% max)
<0.1
Telecentricity Typical (°max)
<0.1
Length of I/O(mm)
794±5
Length (mm)
482
Weight(kg)
7.1
Measured Depth of Field (mm)
10.6
Filter Screw Size
M178 x1.0
Field of View (mm × mm)
48.7×29.0 with KAI-47051
123.9x73.8
57.4mm with 16K×3.5/3.53um
146.1mm
57.4mm with 8K×7um/7.04um
146.1mm
Compatible Lighting
Telecentric LED Lighting
DTCL-150-xW-y
Beam Diameter 150mm

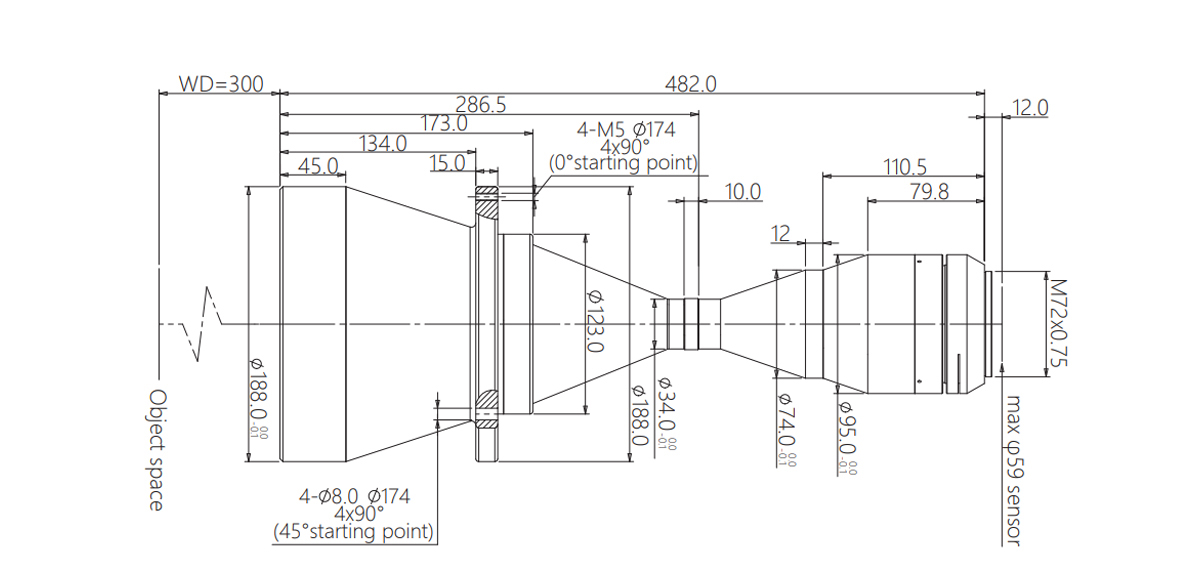

Dimensions
