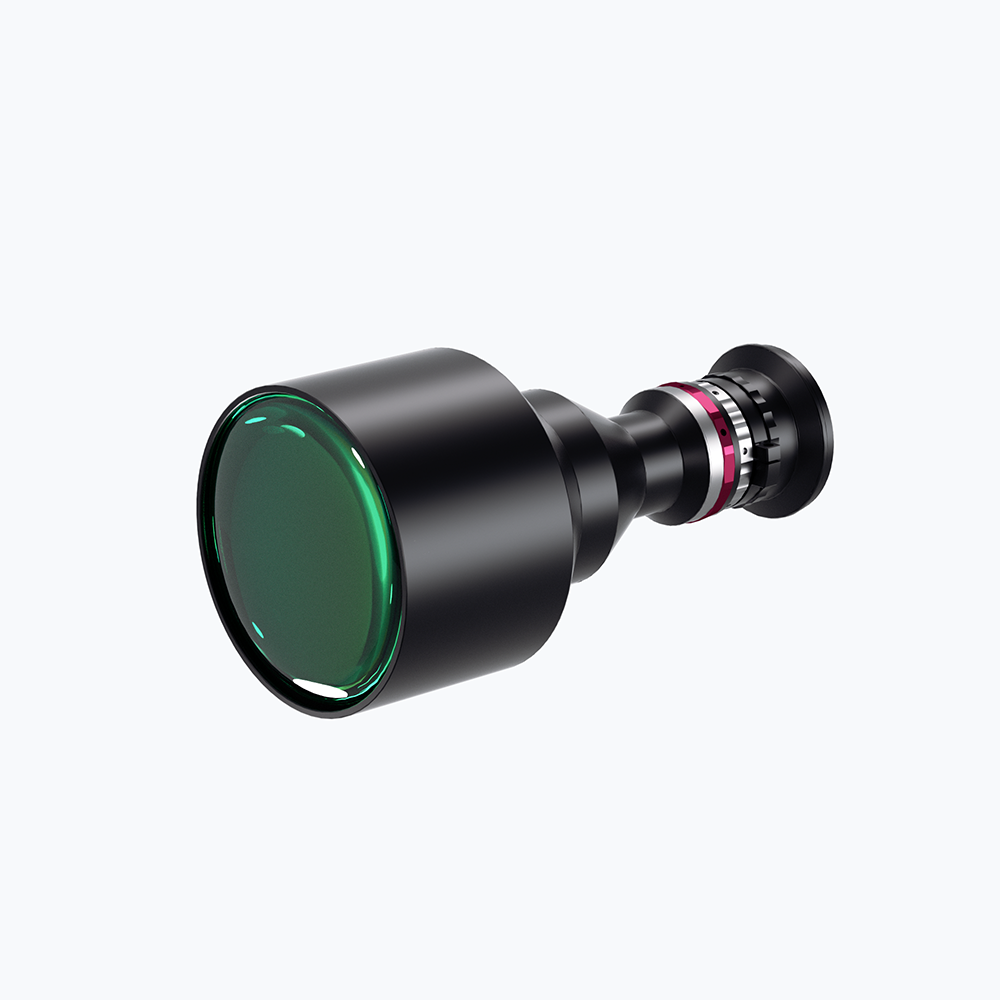

| Model NO. |
DTCA185-81-G-M58-AL |
Image Circle Diameter (Φmm) |
20(1.85") |
| Magnification(x) |
0.37 |
Working Distance(mm) |
250 |
| NA |
0.0231 |
Type |
Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
81.1 |
| Best Aperture(f/#) |
8 |
MTF30 (lp/mm) |
114 |
| Object Resolution(μm) |
14.5 |
Depth of Field(mm) |
4.7 |
| Distortion Typical(% max) |
0.02 |
Telecentricity Typical (°max) |
0.09 |
| Length of I/O(mm) |
462 |
Length (mm) |
200 |
| Weight(kg) |
2.4 |
Iris Adjustable |
Yes |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
1.4 |
| Filter Screw Size |
M100x0.75 |
Field of View (mm × mm)
|
1.75" IMX342 (22.3X16.7) |
60.3x45.1 |
|
|

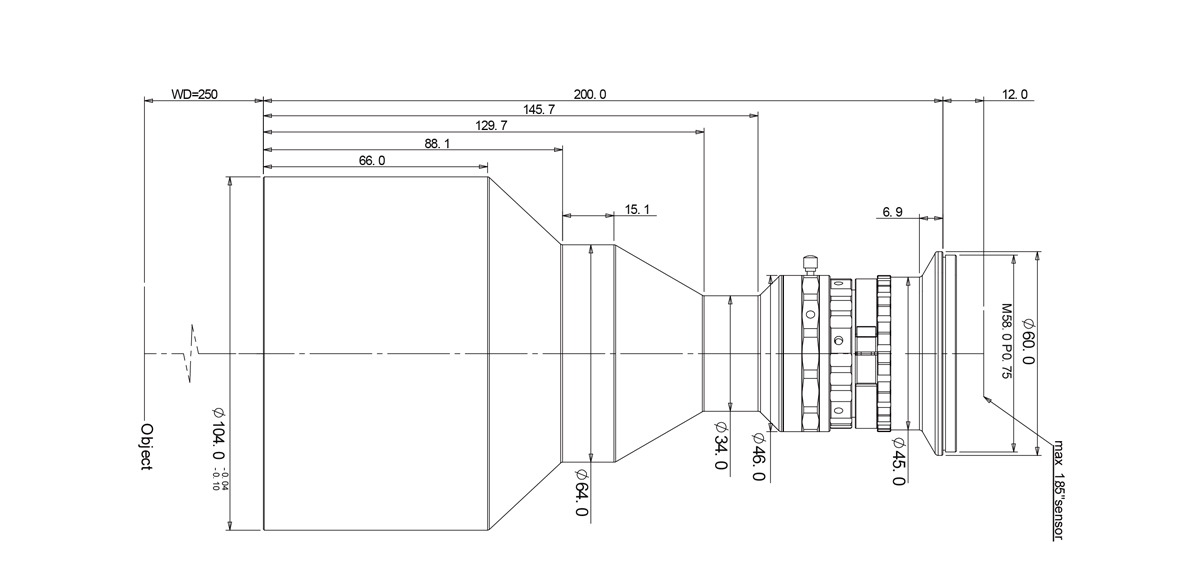

Dimensions
Naming Rule
