| Model NO. |
DTCM430H-64H-M58-AL |
Image Circle Diameter (Φmm) |
23.6(4/3") |
| Magnification(x) |
0.369 |
Working Distance(mm) |
158±3 |
| NA |
0.0266 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
64 |
| Best Aperture(f/#) |
6.9 |
MTF30 (lp/mm) |
>126 |
| Depth of Field(mm) |
±5.9@F20 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
393±3 |
| Length (mm) |
222.6 |
Weight(kg) |
1.3 |
| Measured Depth of Field (mm) |
1.4 |
Filter Screw Size |
M79x0.75 |
Field of View (mm × mm)
|
4/3" Keyence 21M (17.86x14.32) |
48.4x38.8 |
| 4/3" PYTHON 12K (18.43x13.82) |
49.9x37.5 |
| 4/3" CMV8000 (18.48x13.73) |
50.1x37.2 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-64H-xW-y |
| Beam Diameter 64 mm |

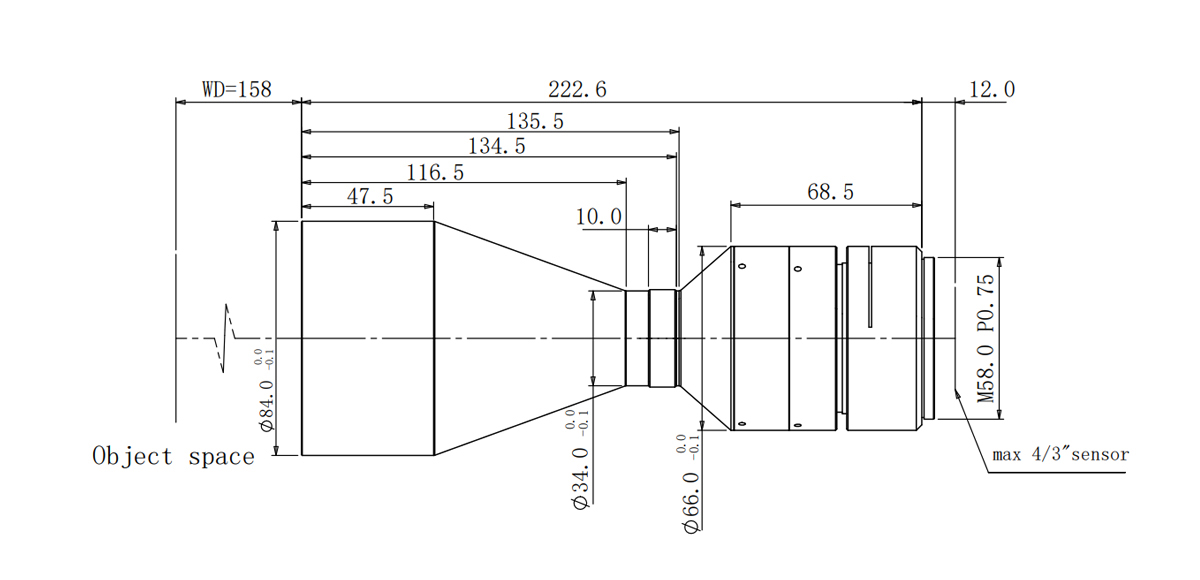

Dimensions
Naming Rule
