Model NO. | DTCM35FH-136-M58-AL | Image Circle Diameter (Φmm) | 43.6(35mm Full) | ||||
Magnification(x) | 0.321 | Working Distance(mm) | 288±5 | ||||
NA | 0.0203 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 136 | ||||
Best Aperture(f/#) | 7.9 | MTF30 (lp/mm) | >110 | ||||
Depth of Field(mm) | ±6.2@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 779±6 | ||||
Length (mm) | 478.9 | Weight(kg) | 5 | ||||
Measured Depth of Field (mm) | 3.2 | Filter Screw Size | M160x0.75 | ||||
Field of View (mm × mm) |
CMV50000 (36.43x27.62) | 113.5x86.0 | |||||
KAI29050/2 (36.17x24.11) 34.8x23.2 | 112.7x75.1 | ||||||
KAI43142 (36.18x24.12) | 112.7x75.1 | ||||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-136-xW-y | |||||
Beam Diameter 136mm |

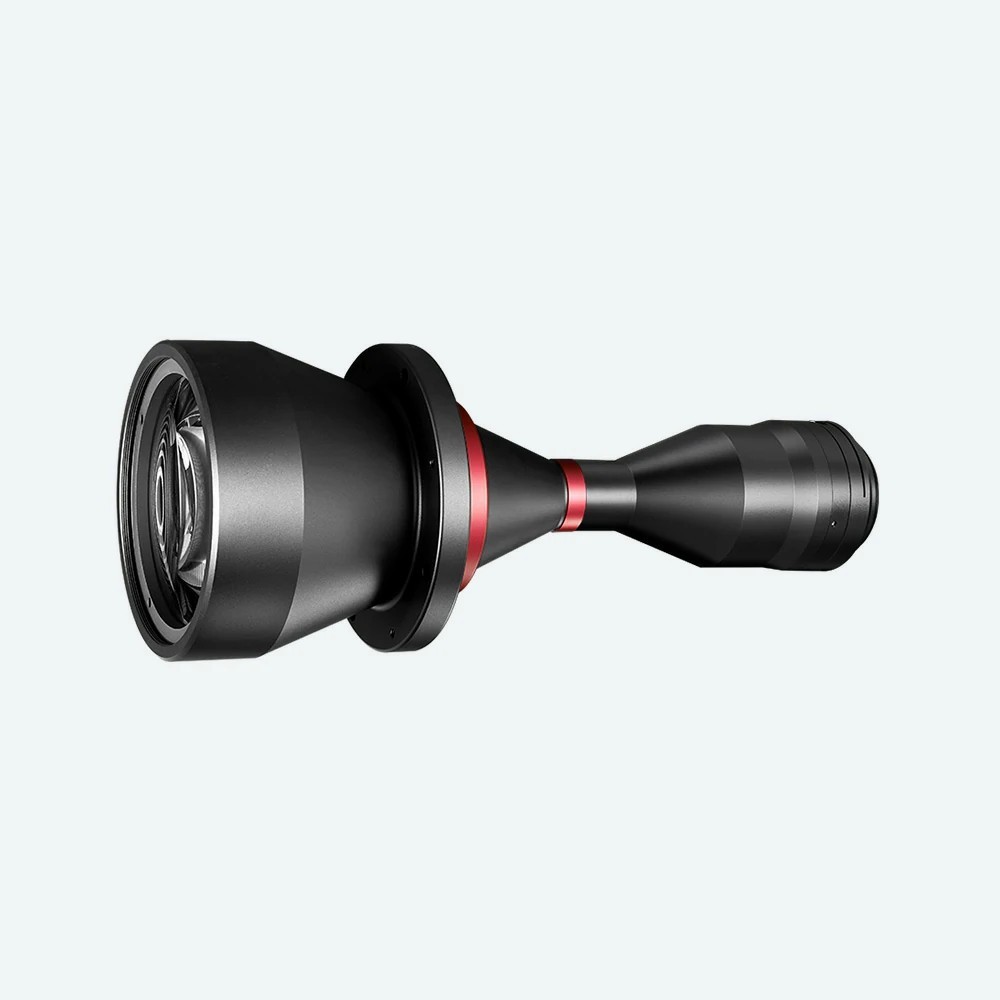

35mm Full 0.321X Bi-Telecentric Lenses | DTCM35FH-136-M58-AL COOLENS®
$4,793.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM35FH-136-M58-AL | Image Circle Diameter (Φmm) | 43.6(35mm Full) | ||||
Magnification(x) | 0.321 | Working Distance(mm) | 288±5 | ||||
NA | 0.0203 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 136 | ||||
Best Aperture(f/#) | 7.9 | MTF30 (lp/mm) | >110 | ||||
Depth of Field(mm) | ±6.2@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 779±6 | ||||
Length (mm) | 478.9 | Weight(kg) | 5 | ||||
Measured Depth of Field (mm) | 3.2 | Filter Screw Size | M160x0.75 | ||||
Field of View (mm × mm) |
CMV50000 (36.43x27.62) | 113.5x86.0 | |||||
KAI29050/2 (36.17x24.11) 34.8x23.2 | 112.7x75.1 | ||||||
KAI43142 (36.18x24.12) | 112.7x75.1 | ||||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-136-xW-y | |||||
Beam Diameter 136mm |
