| Model NO. |
DTCM125-36 |
Sensor Size |
1/2.5" |
| Image Circle Diameter (Φmm) |
7.2(1/2.5") |
Magnification(x) |
0.2 |
| Working Distance(mm) |
110±2 |
NA |
0.02361 |
| Type |
Bi-Telecentric |
Mount |
C |
| Object Field of view(Φmm) |
36 |
Best Aperture(f/#) |
4.2 |
| MTF30 (lp/mm) |
>190 |
Depth of Field(mm) |
±11.0@F11 |
| Distortion typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
| Length of I/O(mm) |
251±2 |
Length (mm) |
123.5 |
| Weight(kg) |
0.4 |
Measured Depth of Field (mm) |
3.2 |
| Filter Screw Size |
M50x0.5 |
| Field of View (mm × mm) |
1/3" AR130/RJ33 (4.8x3.6) |
24.0x18.0 |
| 1/2.5" 9P001/31 (5.7x4.28) |
28.5x21.4 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-36-xW-y |
| Beam Diameter 36mm |

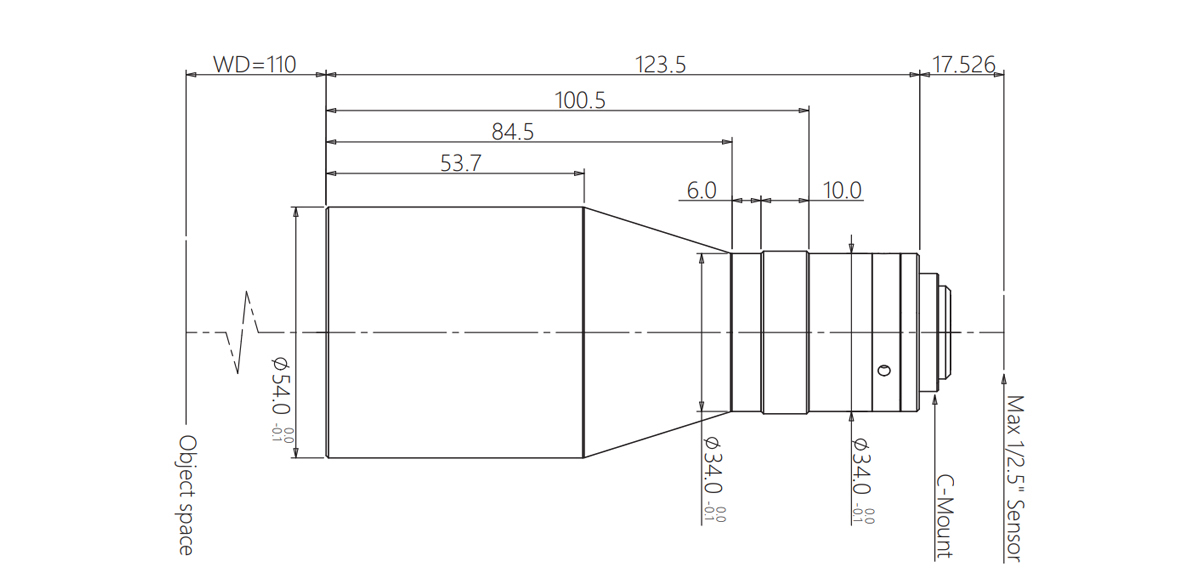

Dimensions
Naming Rule
