Model No.	Image Circle Diameter (Φmm)	Magnification(x)	Working Distance(mm)	NA	Type	Mount	Price
DTCM175-26-M58-AL	29(1.75")	1.115	73±1	0.0368	Bi-Telecentric	M58	$1,812.00
DTCM175-36-M58-AL	29(1.75")	0.806	110±2	0.0295	Bi-Telecentric	M58	$1,910.00
DTCM175-42-M58-AL	29(1.75")	0.690	118±3	0.0304	Bi-Telecentric	M58	$2,105.00
DTCM175-48-M58-AL	29(1.75")	0.604	128±3	0.0266	Bi-Telecentric	M58	$2,532.00
DTCM175-56-M58-AL	29(1.75")	0.518	138±3	0.0266	Bi-Telecentric	M58	$2,591.00
DTCM175-64H-M58-AL	29(1.75")	0.453	158±3	0.0266	Bi-Telecentric	M58	$2,864.00
DTCM175-72-M58-AL	29(1.75")	0.403	178±3	0.0236	Bi-Telecentric	M58	$3,000.00
DTCM175-80H-M58-AL	29(1.75")	0.363	228±4	0.0266	Bi-Telecentric	M58	$3,165.00
DTCM175-90-M58-AL	29(1.75")	0.322	208±3	0.0213	Bi-Telecentric	M58	$3,332.00
DTCM175-100H-M58-AL	29(1.75")	0.290	238±4	0.0128	Bi-Telecentric	M58	$3,624.00
DTCM175-110-M58-AL	29(1.75")	0.264	263±4	0.0193	Bi-Telecentric	M58	$3,818.00
DTCM175-120H-M58-AL	29(1.75")	0.242	273±5	0.0071	Bi-Telecentric	M58	$4,013.00
DTCM175-136-M58-AL	29(1.75")	0.213	288±5	0.0156	Bi-Telecentric	M58	$4,520.00
DTCM175-150-M58-AL	29(1.75")	0.193	300±5	0.0099	Bi-Telecentric	M58	$5,105.00
DTCM175-170-M58-AL	29(1.75")	0.171	318±5	0.0125	Bi-Telecentric	M58	$6,915.00
DTCM175-190H-M58-AL	29(1.75")	0.153	330±5	0.0112	Bi-Telecentric	M58	$8,727.00
DTCM175-216-M58-AL	29(1.75")	0.134	372±5	0.0098	Bi-Telecentric	M58	$11,571.00
DTCM175-240H-M58-AL	29(1.75")	0.121	410±6	0.0089	Bi-Telecentric	M58	$14,571.00
DTCM175-258-M58-AL	29(1.75")	0.112	338±5	0.0082	Bi-Telecentric	M58	$15,000.00
DTCM175-300-M58-AL	29(1.75")	0.097	465±6	0.0071	Bi-Telecentric	M58	$20,066.00

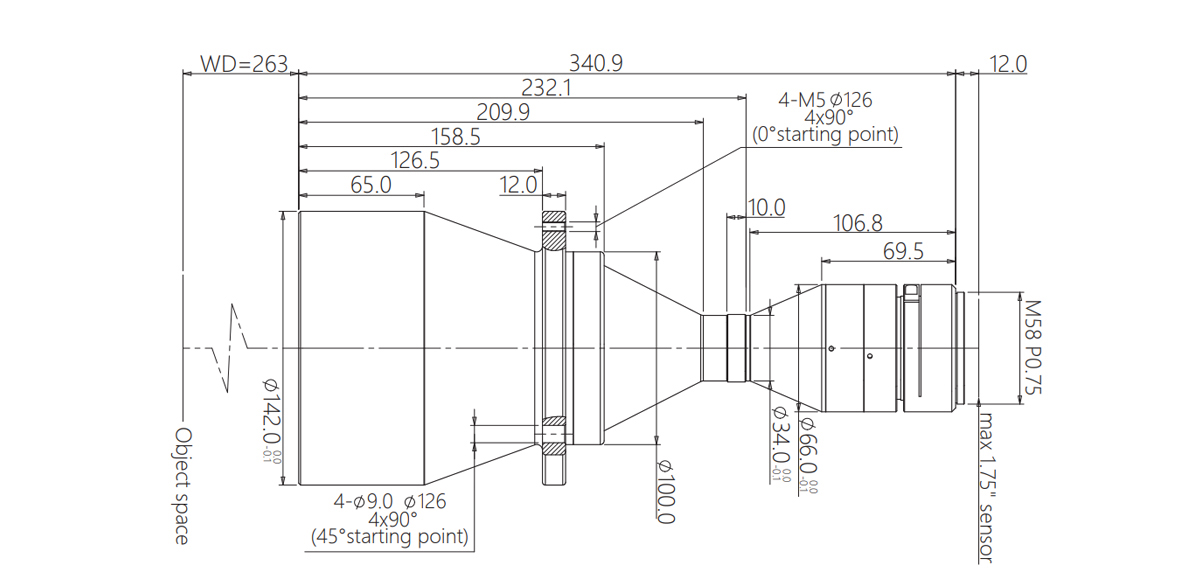

1.75" 0.264X Bi-Telecentric Lenses | DTCM175-110-M58-AL COOLENS®
