| Model NO. |
DTCM111-72-AL |
Image Circle Diameter (Φmm) |
18.4(1.1") |
| Magnification(x) |
0.256 |
Working Distance(mm) |
178±3 |
| NA |
0.0207 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
72 |
| Best Aperture(f/#) |
6.2 |
MTF30 (lp/mm) |
>145 |
| Depth of Field(mm) |
±6.7@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
417±3 |
| Length (mm) |
221.7 |
Weight(kg) |
1.2 |
| Measured Depth of Field (mm) |
2.5 |
Filter Screw Size |
M84x0.5 |
Field of View (mm × mm)
|
1" IMX183 (13.13x8.76) |
51.3x34.2 |
| 1.1" IMX253 (14.19x10.38) |
55.4x40.5 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-72-xW-y |
| Beam Diameter 72mm |

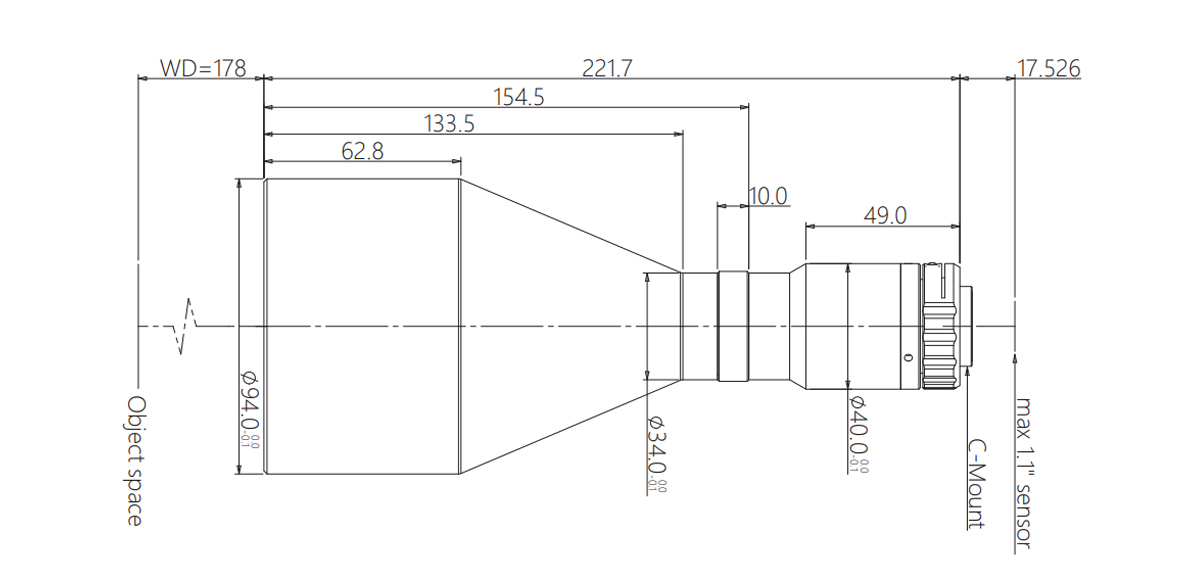

Dimensions
Naming Rule
