| Model NO. |
DTCM118-36 |
Image Circle Diameter (Φmm) |
9.0(1/1.8") |
| Magnification(x) |
0.25 |
Working Distance(mm) |
110±2 |
| NA |
0.0272 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
36 |
| Best Aperture(f/#) |
4.6 |
MTF30 (lp/mm) |
>180 |
| Depth of Field(mm) |
±7.0@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
256±2 |
| Length (mm) |
128.3 |
Weight(kg) |
0.4 |
| Measured Depth of Field (mm) |
2.8 |
Filter Screw Size |
M50x0.5 |
| Field of View (mm × mm) |
1/1.8" IMX178 (7.43x4.9) |
29.7x19.6 |
| 1/1.8" IMX252/265 (7.1x5.3) |
28.4x21.2 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-36-xW-y |
| Beam Diameter 36mm |

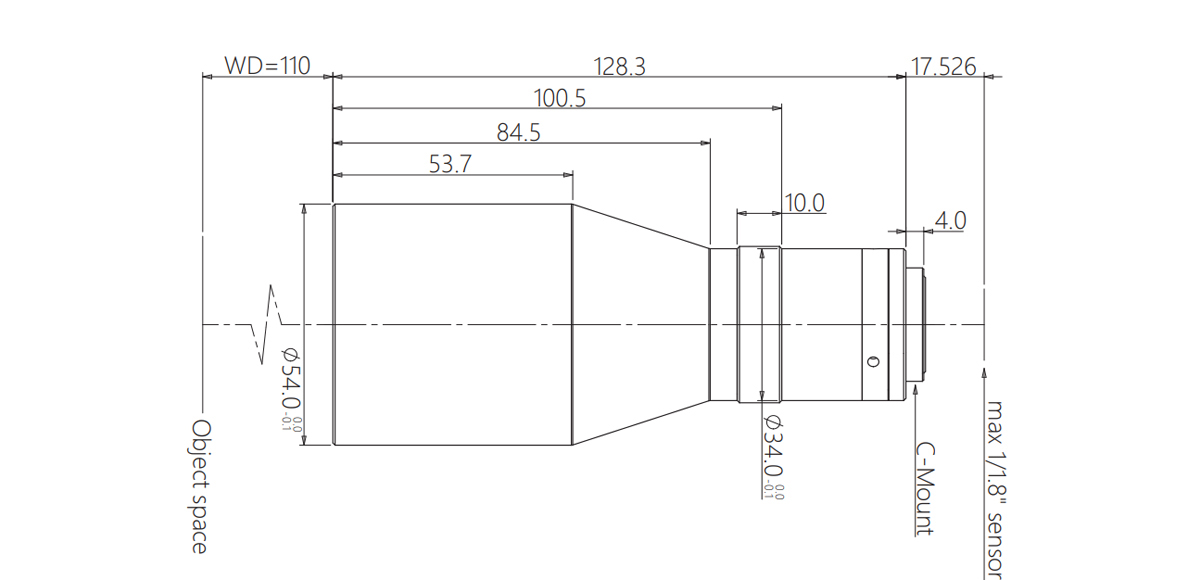

Dimensions
Naming Rule
