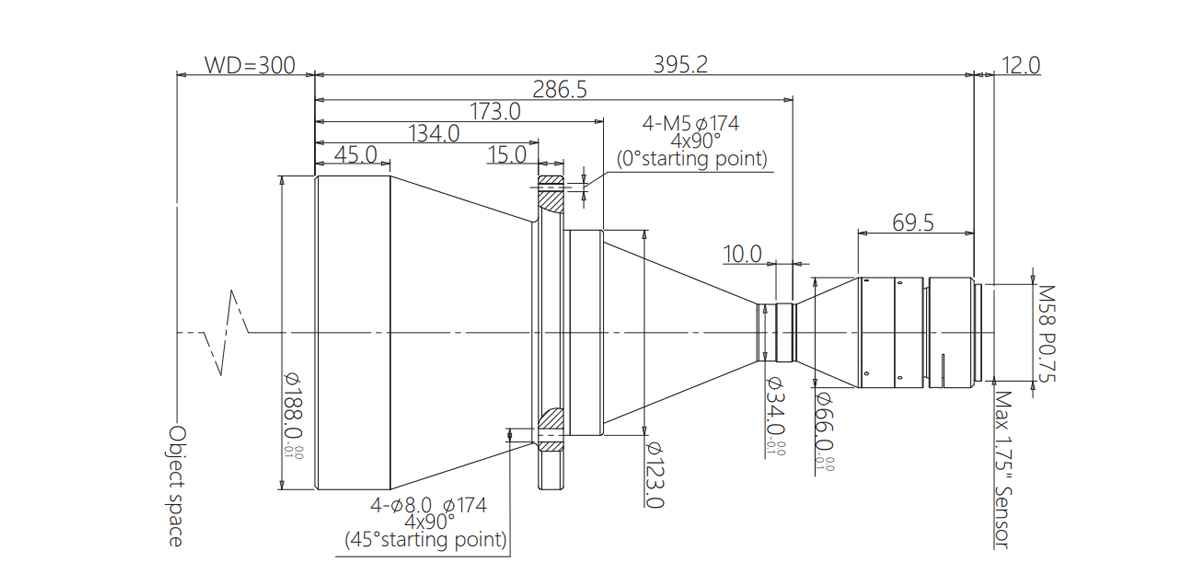

Model NO. | DTCM175-150-M58-AL | Image Circle Diameter (Φmm) | 29(1.75") | ||||
Magnification(x) | 0.193 | Working Distance(mm) | 300±5 | ||||
NA | 0.0099 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 150 | ||||
Best Aperture(f/#) | 9.7 | MTF30 (lp/mm) | >90 | ||||
Depth of Field(mm) | ±21.5@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 707±5 | ||||
Length (mm) | 395.2 | Weight(kg) | 6.2 | ||||
Measured Depth of Field (mm) | 10 | Filter Screw Size | M178x1.0 | ||||
Field of View (mm × mm) |
1.75" CMV12000 (22.53x16.90) |
116.7x87.6 |
|||||
1.75" PYTHON16k (18.43x18.43) |
95.5x95.5 |
||||||
1.75" LineScan-4k (28.8mm) |
149.2mm |
||||||
Compatible Lighting | Telecentric LED Lighting |
DTCL-150-xW-y |
|||||
Beam Diameter 150mm |
