Model NO. | DTCM111-100H-AL | Image Circle Diameter (Φmm) | 18.4(1.1") | ||||
Magnification(x) | 0.184 | Working Distance(mm) | 238±4 | ||||
NA | 0.0128 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 100 | ||||
Best Aperture(f/#) | 6.2 | MTF30 (lp/mm) | >120 | ||||
Depth of Field(mm) | ±13.0@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 545±4 | ||||

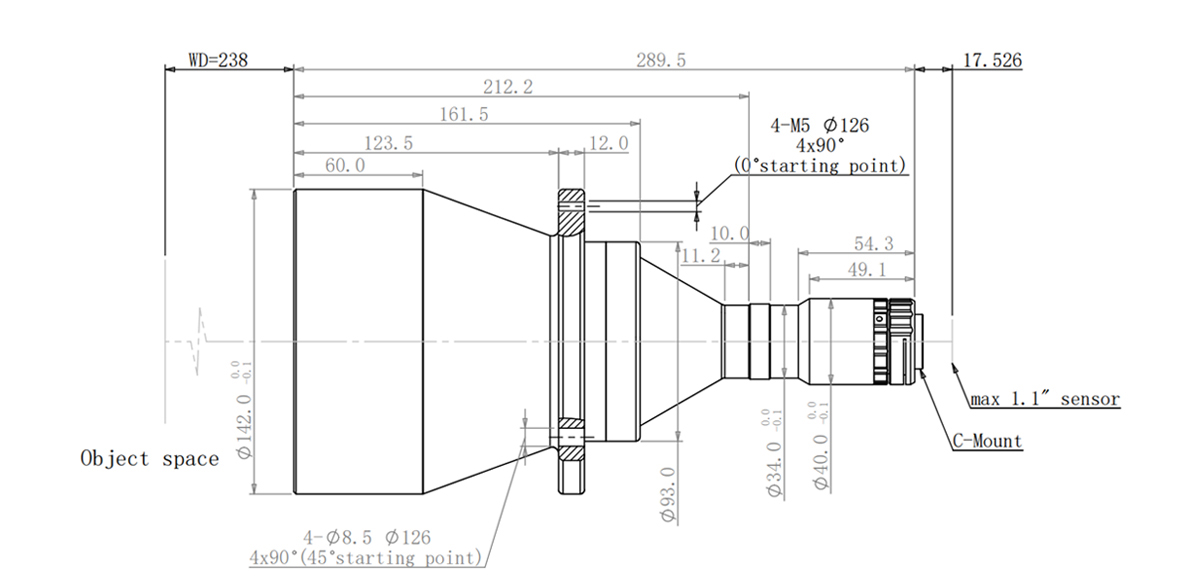

Length (mm) | 289.5 | Weight(kg) | 3.2 | ||||
Measured Depth of Field (mm) | 4.4 | Filter Screw Size | M111x0.75 | ||||
Field of View (mm × mm) |
1" IMX183 (13.13x8.76) | 71.4x47.6 | |||||
1.1" IMX253 (14.19x10.38) | 77.1x56.4 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-100H-xW-y | |||||
Beam Diameter 100mm |
1.1" 0.184X Bi-Telecentric Lenses | DTCM111-100H-AL COOLENS®
$2,532.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM111-100H-AL | Image Circle Diameter (Φmm) | 18.4(1.1") | ||||
Magnification(x) | 0.184 | Working Distance(mm) | 238±4 | ||||
NA | 0.0128 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 100 | ||||
Best Aperture(f/#) | 6.2 | MTF30 (lp/mm) | >120 | ||||
Depth of Field(mm) | ±13.0@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 545±4 | ||||
Length (mm) | 289.5 | Weight(kg) | 3.2 | ||||
Measured Depth of Field (mm) | 4.4 | Filter Screw Size | M111x0.75 | ||||
Field of View (mm × mm) |
1" IMX183 (13.13x8.76) | 71.4x47.6 | |||||
1.1" IMX253 (14.19x10.38) | 77.1x56.4 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-100H-xW-y | |||||
Beam Diameter 100mm |
