| Model NO. |
DTCM35FH-300-M58-AL |
Image Circle Diameter (Φmm) |
43.6(35mm Full) |
| Magnification(x) |
0.145 |
Working Distance(mm) |
465±6 |
| NA |
0.0109 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
300 |
| Best Aperture(f/#) |
6.7 |
MTF30 (lp/mm) |
>130 |
| Depth of Field(mm) |
±20.9@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
1234±6 |
| Length (mm) |
757.3 |
Weight(kg) |
47.5 |
| Measured Depth of Field (mm) |
10 |
Filter Screw Size |
/ |
Field of View (mm × mm)
|
CMV50000 (36.43x27.62) |
251.2x190.5 |
|
| KAI29050/2 (36.17x24.11) 34.8x23.2 |
249.4x166.3 |
| KAI43142 (36.18x24.12) |
249.5x166.3 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-300-xW-y |
|
| Beam Diameter 300mm |

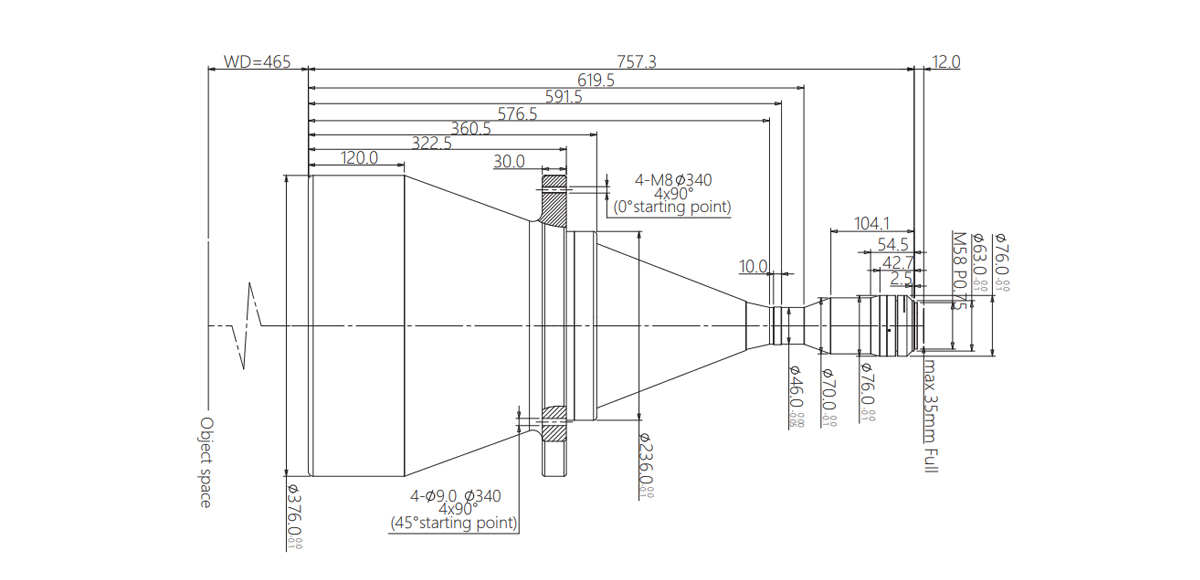

Dimensions
Naming Rule
