Model NO. | DTCM430H-190H-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.124 | Working Distance(mm) | 330±5 | ||||
NA | 0.0134 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 190 | ||||
Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >176 | ||||
Depth of Field(mm) | ±41.5@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 806±5 | ||||
Length (mm) | 463.8 | Weight(kg) | 10.1 | ||||
Measured Depth of Field (mm) | 8 | Filter Screw Size | M223x1.0 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 144.0x115.5 | |||||
4/3" PYTHON 12K (18.43x13.82) | 131.6x111.5 | ||||||
4/3" CMV8000 (18.48x13.73) | 149.0x110.7 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-190H-xW-y | |||||
Beam Diameter 190mm |

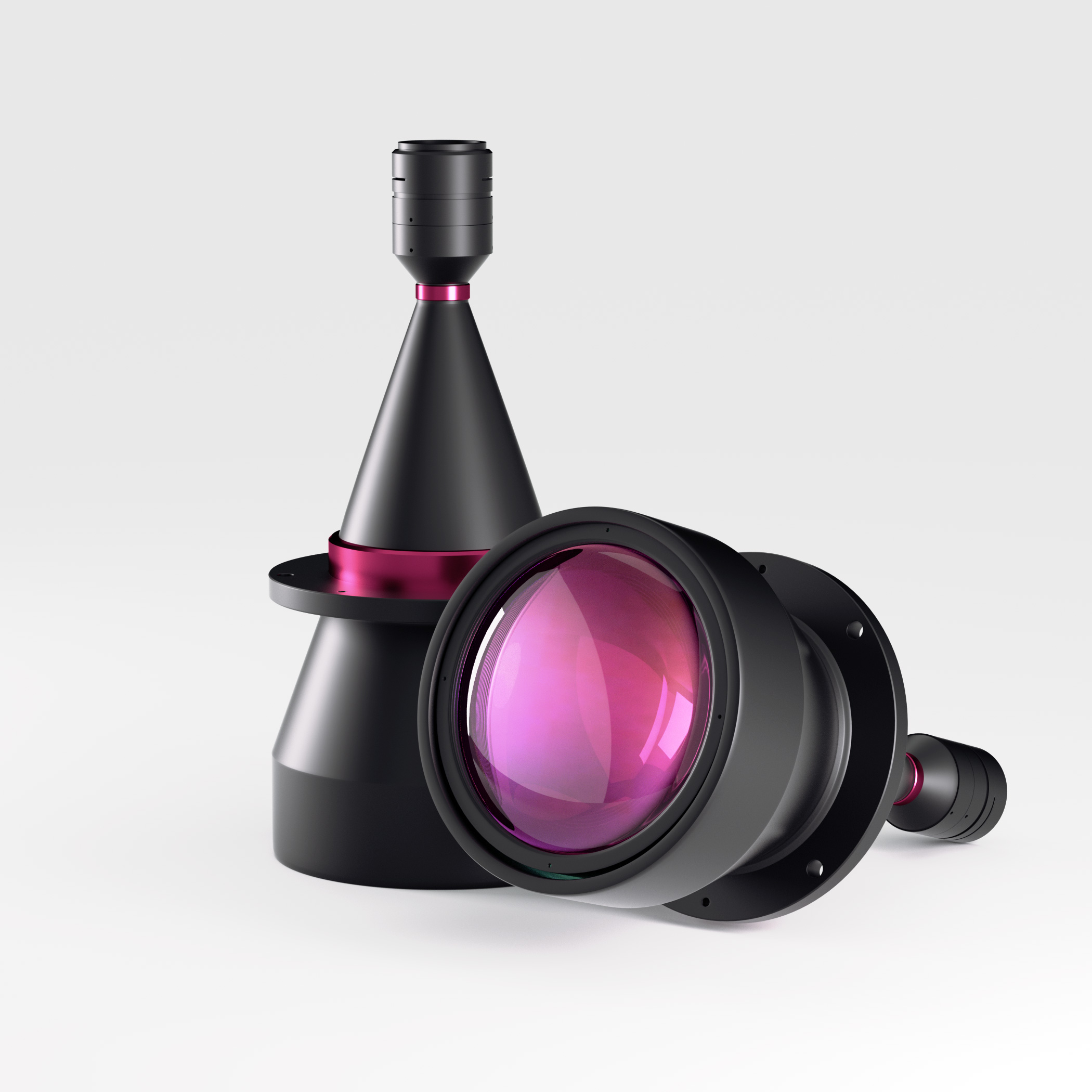

4/3" 0.124X Bi-Telecentric Lenses | DTCM430H-190H-M58-AL COOLENS®
$8,454.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM430H-190H-M58-AL | Image Circle Diameter (Φmm) | 23.6(4/3") | ||||
Magnification(x) | 0.124 | Working Distance(mm) | 330±5 | ||||
NA | 0.0134 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 190 | ||||
Best Aperture(f/#) | 4.6 | MTF30 (lp/mm) | >176 | ||||
Depth of Field(mm) | ±41.5@F16 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 806±5 | ||||
Length (mm) | 463.8 | Weight(kg) | 10.1 | ||||
Measured Depth of Field (mm) | 8 | Filter Screw Size | M223x1.0 | ||||
Field of View (mm × mm) |
4/3" Keyence 21M (17.86x14.32) | 144.0x115.5 | |||||
4/3" PYTHON 12K (18.43x13.82) | 131.6x111.5 | ||||||
4/3" CMV8000 (18.48x13.73) | 149.0x110.7 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-190H-xW-y | |||||
Beam Diameter 190mm |
