| Model NO. |
DTCM210-300-M58-AL |
Image Circle Diameter (Φmm) |
33(2") |
| Magnification(x) |
0.11 |
Working Distance(mm) |
465±6 |
| NA |
0.0071 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
300 |
| Best Aperture(f/#) |
7.8 |
MTF30 (lp/mm) |
>115 |
| Depth of Field(mm) |
±52.8@F16 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
1197±6 |
| Length (mm) |
720 |
Weight(kg) |
47.1 |
| Measured Depth of Field (mm) |
19 |
Filter Screw Size |
/ |
Field of View (mm × mm)
|
2" DALSA 12M (24.58x18.43) |
223.5x167.5 |
| 2" PYTHON 25K (23.04x23.04) |
209.5x209.5 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-300-xW-y |
| Beam Diameter 300mm |

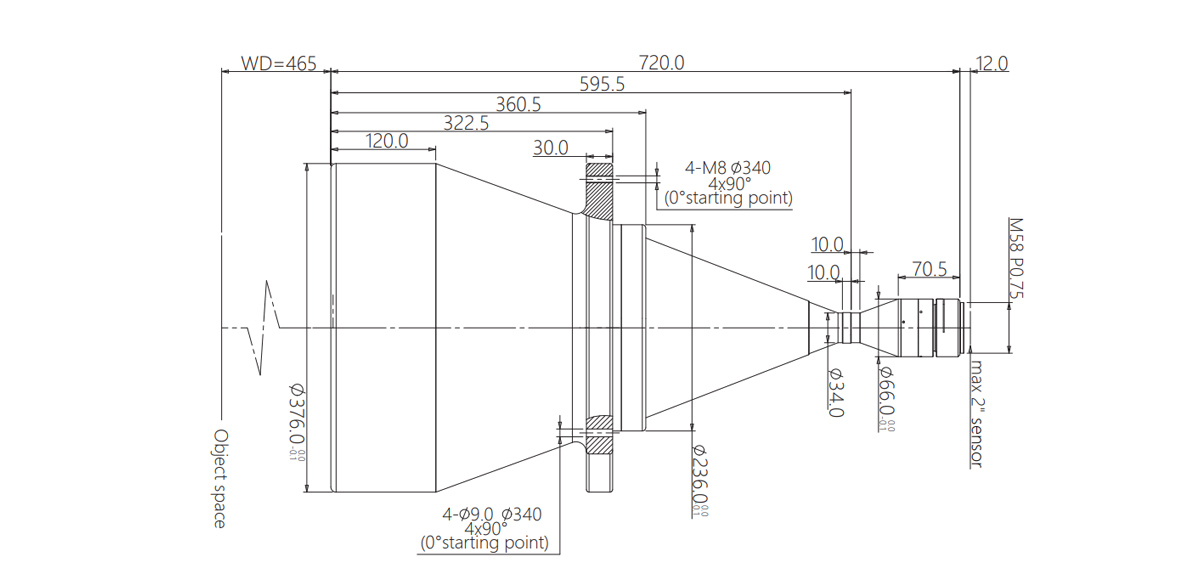

Dimensions
Naming Rule
