| Model NO. |
DTCM111-170-AL |
Image Circle Diameter (Φmm) |
18.4(1.1") |
| Magnification(x) |
0.108 |
Working Distance(mm) |
318±5 |
| NA |
0.0088 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
170 |
| Best Aperture(f/#) |
6.2 |
MTF30 (lp/mm) |
>150 |
| Depth of Field(mm) |
±37.7@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
751±5 |
| Length (mm) |
415.6 |
Weight(kg) |
6.6 |
| Measured Depth of Field (mm) |
14 |
Filter Screw Size |
M204x0.75 |
Field of View (mm × mm)
|
1" IMX183 (13.13x8.76) |
121.6x81.1 |
| 1.1" IMX253 (14.19x10.38) |
131.4x96.1 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-170-xW-y |
| Beam Diameter 170mm |

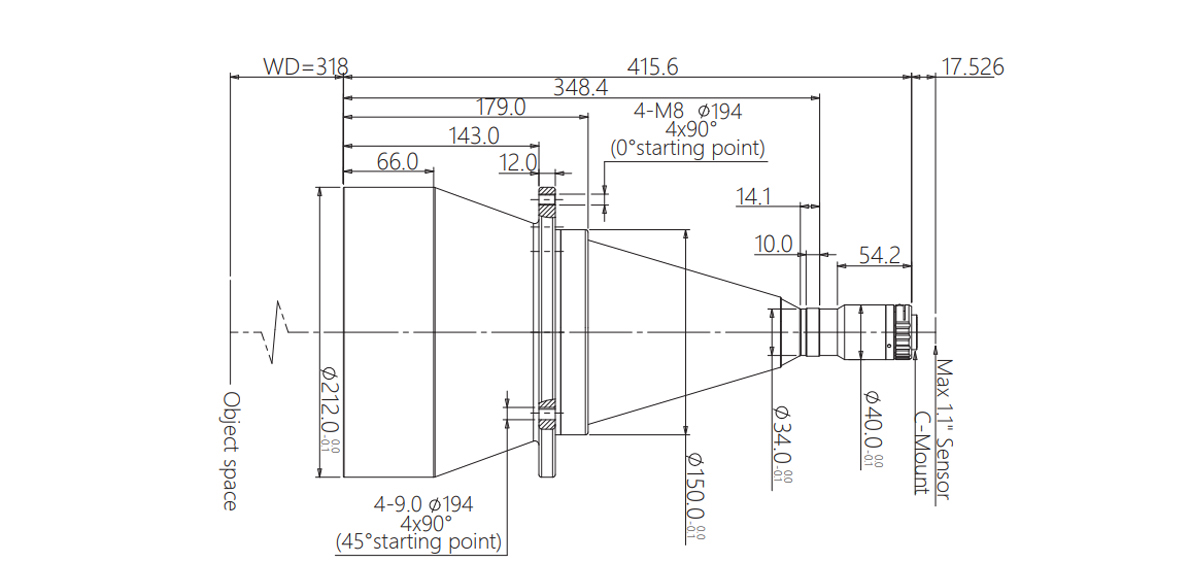

Dimensions
Naming Rule
