| Model NO. |

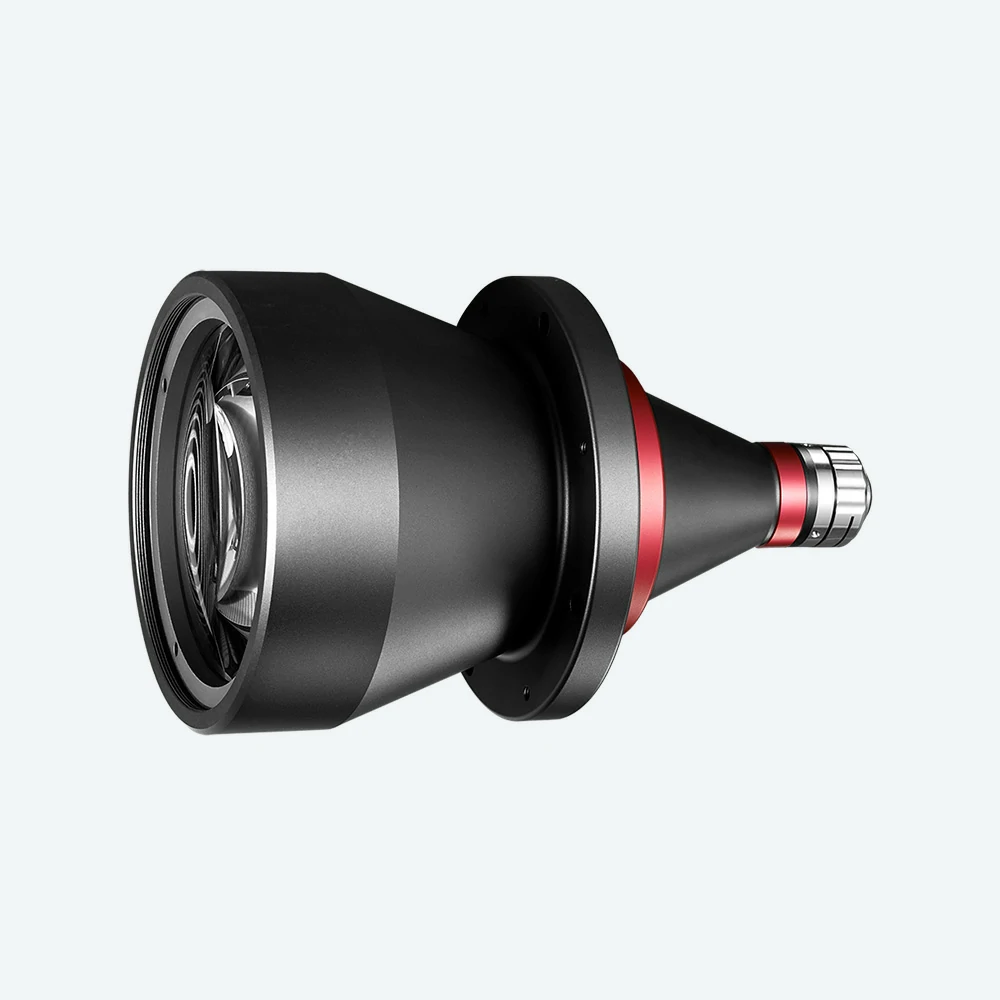

DTCM125-100H-AL |
Image Circle Diameter (Φmm) |
7.2(1/2.5") |
| Magnification(x) |
0.072 |
Working Distance(mm) |
238±4 |
| NA |
0.0085 |
Type |
Bi-Telecentric |
| Mount |
C |
Object Field of View(Φmm) |
100 |
| Best Aperture(f/#) |
4.2 |
MTF30 (lp/mm) |
>210 |
| Depth of Field(mm) |
±84.8@F11 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
501±4 |
| Length (mm) |
245.3 |
Weight(kg) |
3.1 |
| Measured Depth of Field (mm) |
17 |
Filter Screw Size |
M128x1.0 |
| Field of View (mm × mm) |
1/3" AR130/RJ33 (4.8x3.6) |
66.7x50.0 |
| 1/2.5" 9P001/31 (5.7x4.28) |
79.2x59.4 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-100H-xW-y |
| Beam Diameter 100mm |
