Model NO. | DTCM120-150-AL | Image Circle Diameter (Φmm) | 8(1/2") | ||||
Magnification(x) | 0.053 | Working Distance(mm) | 300±5 | ||||
NA | 0.0064 | Type | Bi-Telecentric | ||||
Mount | C | Object Field of View(Φmm) | 150 | ||||
Best Aperture(f/#) | 4.2 | MTF30 (lp/mm) | >210 | ||||
Depth of Field(mm) | ±156@F11 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 631±5 | ||||

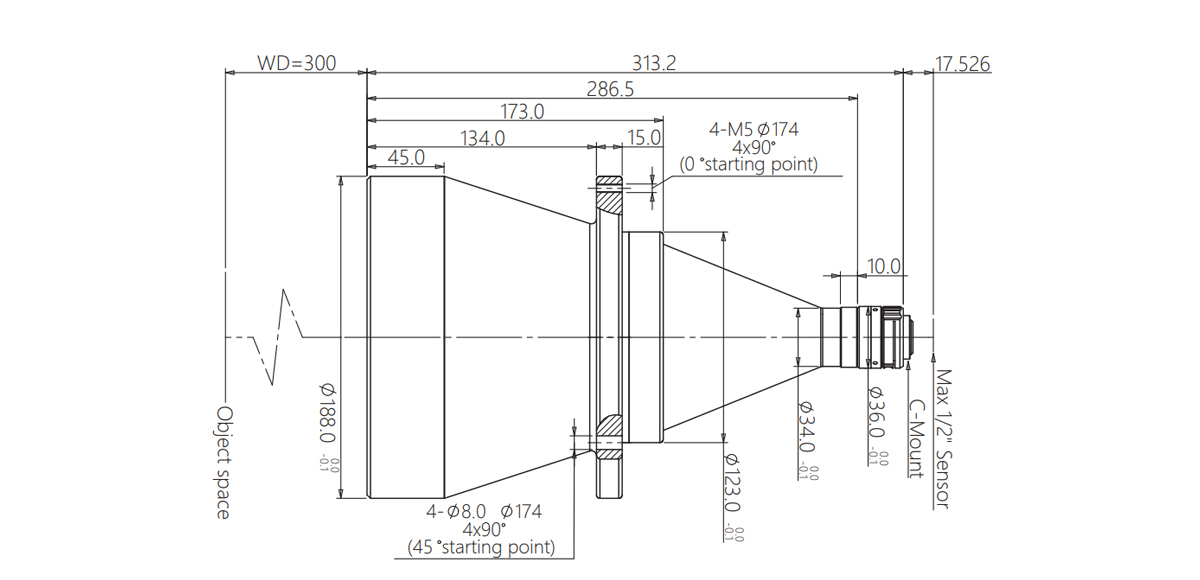

Length (mm) | 313.2 | Weight(kg) | 5.6 | ||||
Measured Depth of Field (mm) | 23 | Filter Screw Size | M178x1.0 | ||||
Field of View (mm × mm) | 1/2.5" 9P001/31 (5.7x4.28) | 107.5x80.8 | |||||
1/2.3" 9J003 (6.44x4.62) | 121.5x87.2 | ||||||
Compatible Lighting | Telecentric LED Lighting | DTCL-150-xW-y | |||||
Beam Diameter 150mm |
