1/2.5" 0.033X Bi-Telecentric Lenses | DTCM125-216-AL COOLENS®

DTCM125-216-AL
$9,273.00 USD
Shipping calculated at checkout.
Quantity
1/2.5" 0.033X Bi-Telecentric Lenses | DTCM125-216-AL COOLENS®-OKLAB

Description

Model NO. DTCM125-216-AL Image Circle Diameter (Φmm) 7.2(1/2.5")
Magnification(x) 0.033 Working Distance(mm) 372±5
NA 0.0039 Type Bi-Telecentric
Mount C Object Field of View(Φmm) 216
Best Aperture(f/#) 4.2 MTF30 (lp/mm) >210
Depth of Field(mm) ±404@F11 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length of I/O(mm) 884±5
Length (mm) 494.2 Weight(kg) 13.7
Measured Depth of Field (mm) 75 Filter Screw Size M249x1.0
Field of View (mm × mm) 1/3" AR130/RJ33 (4.8x3.6) 145.5x109.1
1/2.5" 9P001/31 (5.7x4.28) 172.7x129.7
Compatible Lighting Telecentric LED Lighting DTCL-216-xW-y
Beam Diameter 216mm

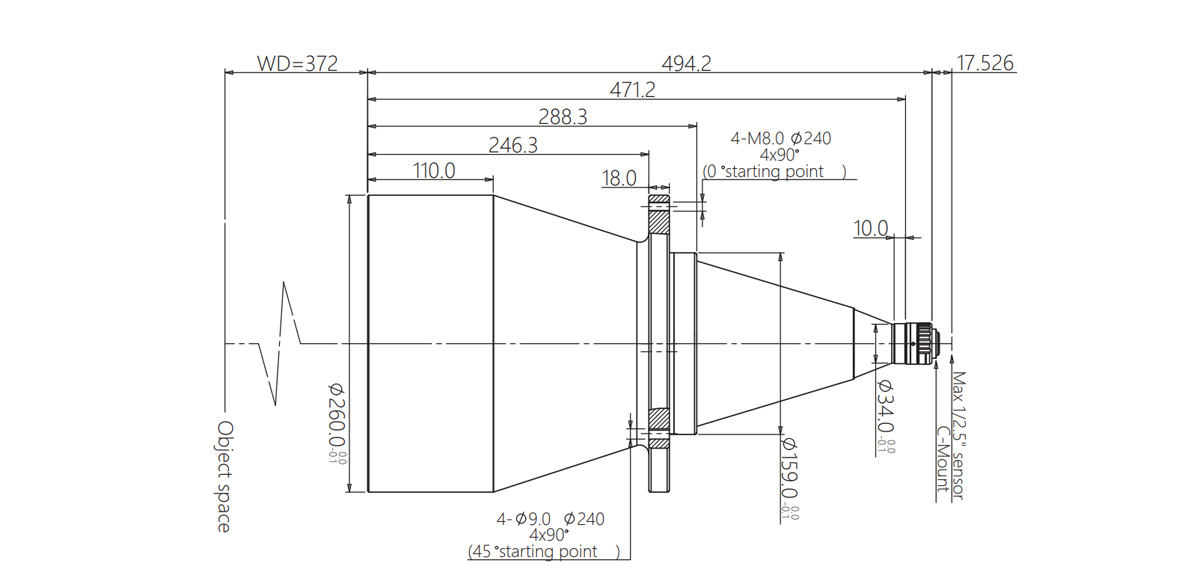

Dimensions

Naming Rule
